DorfitConcealed Hinges


Item Code DTCH
Material Zinc Alloy Body with Stainless Steel Connecting Strips
Finish Satin Nickel
Maximum Opening Angle 180°
Accessories included Screws

Size

Description
OpenClose
  • Concealed Installation
  • Hinge Completely Invisible When Door Is Closed
  • Applicable For Wooden And Metal Doors

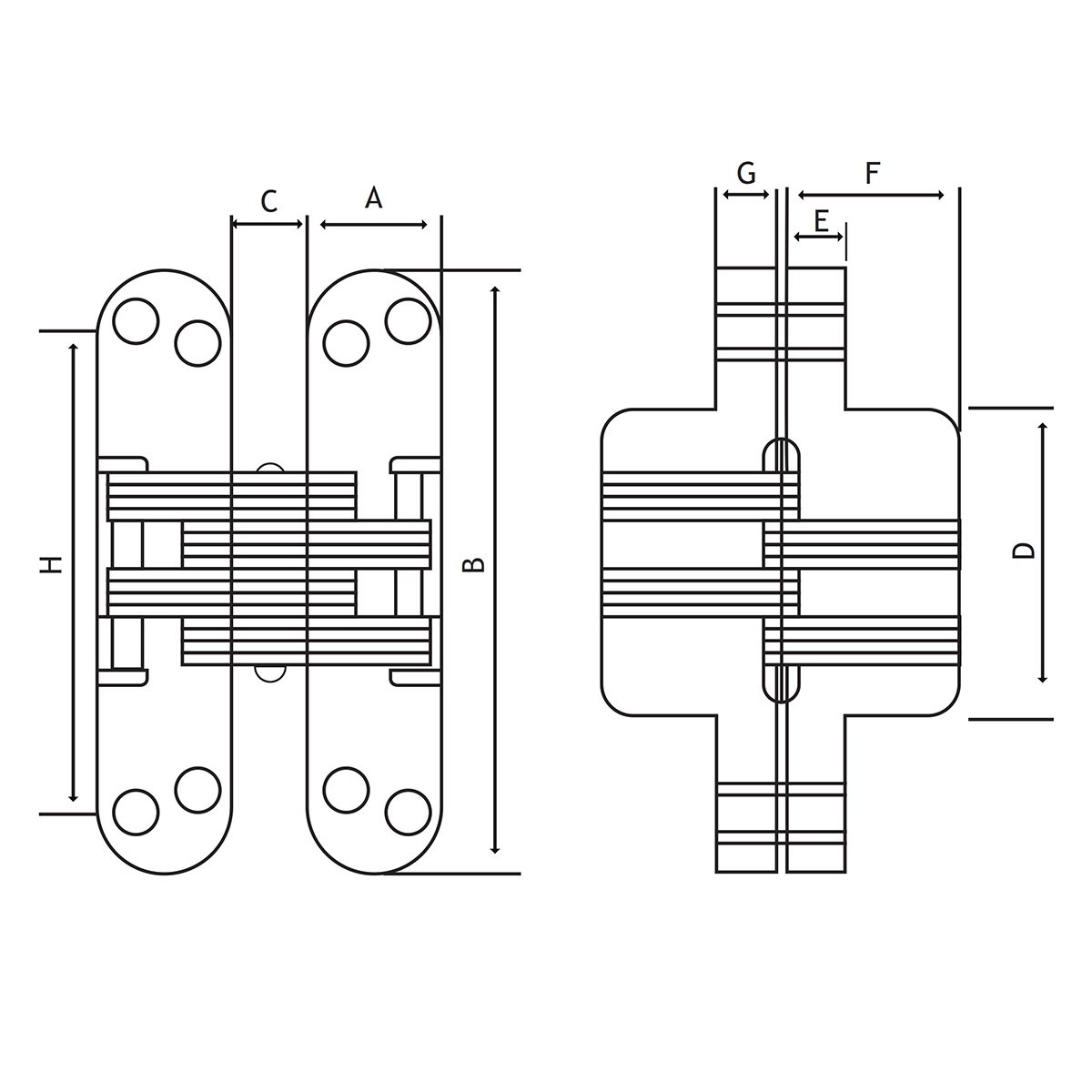

Item Code A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (CTC)
DTCH003 13 45 9 19 0.8 18 5 30.5
DTCH004 13 60 9 30.5 0.8 18 6 47
DTCH005 16 70 11 34 0.8 22.5 7 51
DTCH006 19 95 13 51.2 1.2 27 9 73
DTCH008 28 118 22 61.5 1.4 41 9.5 93
DTCH009 34 140 27.5 74.5 1.6 51 11.5 113.5



Item Code Door Thickness (mm) Load Capacity (KG)
DTCH003 20 5
DTCH004 20 10
DTCH005 25 15
DTCH006 30 25
DTCH008 40 40
DTCH009 50 50
