MORTISE LOCKS MORTISE LOCKS

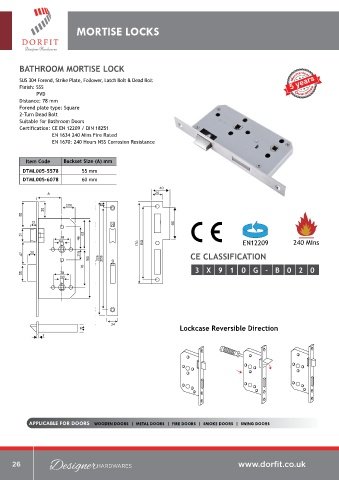

BATHROOM MORTISE LOCK NARROW TYPE LATCH LOCK

SUS 304 Forend, Strike Plate, Follower, Latch Bolt & Dead Bolt 5 years SUS 304 Forend, Strike Plate, Follower, Latch Bolt & Dead Bolt
Finish: SSS Finish: SSS
PVD Distance: 92 mm
Distance: 78 mm Follower: 8x8 mm
Forend plate type: Square Forend plate type: Square
2-Turn Dead Bolt 1-Turn Dead Bolt
Suitable for Bathroom Doors
Certification: CE EN 12209 / DIN 18251
EN 1634 240 Mins Fire Rated Item Code Backset Size (A) mm
EN 1670: 240 Hours NSS Corrosion Resistance DTML008-2092 20 mm

DTML008-2592 25 mm
Item Code Backset Size (A) mm DTML008-3092 30 mm
DTML005-5578 55 mm DTML008-3592 35 mm
DTML005-6078 60 mm

A 22 20.5

32.5 15 145
EN12209 240 Mins 46 40.5
11 13
CE CLASSIFICATION 100
26 8x8 50 14
3 X 9 1 0 G - B 0 2 0 50

19.5
59 9 10
7.2 9 225 45
175 240 211
92
35 11
Φ17.2 100 55
Lockcase Reversible Direction
33.4

32 34.5
10.2
Φ6
Φ5 Φ9
Φ8
14
2.5

APPLICABLE FOR DOORS WOODEN DOORS | METAL DOORS | FIRE DOORS | SMOKE DOORS | SWING DOORS APPLICABLE FOR DOORS WOODEN DOORS | METAL DOORS | SWING GATES
